前言
上一期我们简单的使用了StateDrivenCamera相机，这次我们来使用一下ClearShot
使用ClearShot完成根据模型位置自动切换不同的相机

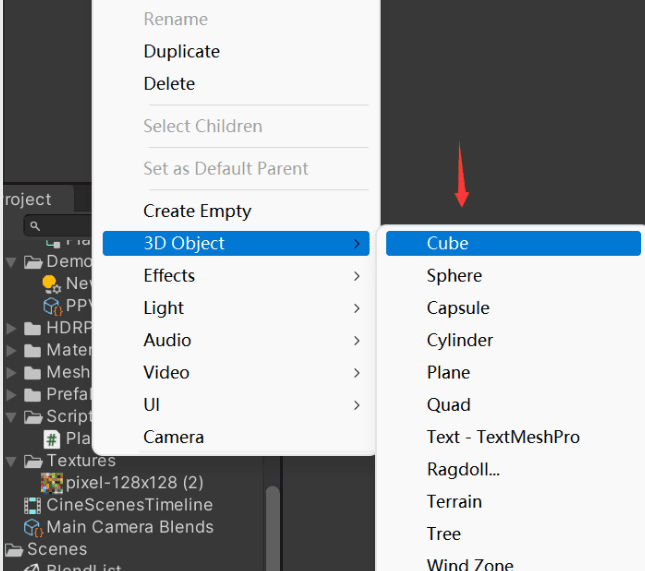

1. 创建一个游戏物体
![图片[1]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-36.png)

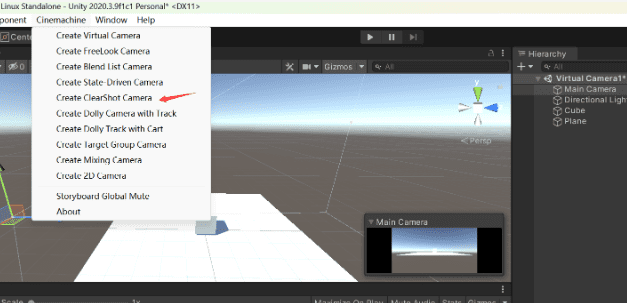

2. 创建ClearShot相机
![图片[2]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-37.png)

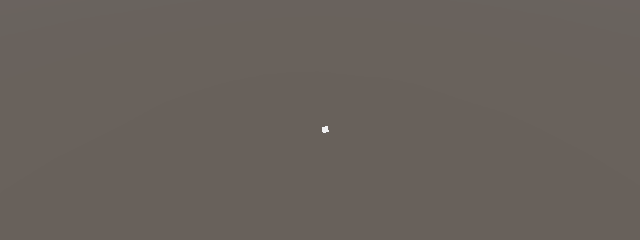

游戏物体比较远不方便调试
![图片[3]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-38.png)

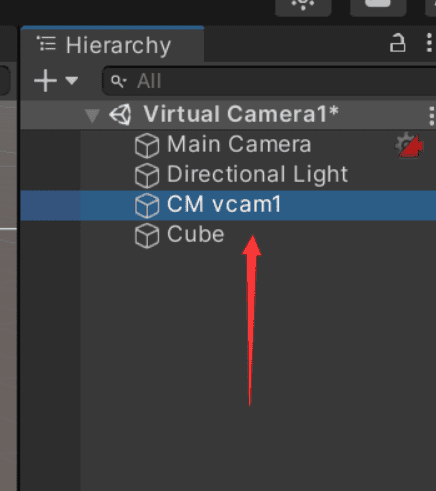

选中Virtual Camera相机
![图片[4]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-39.png)

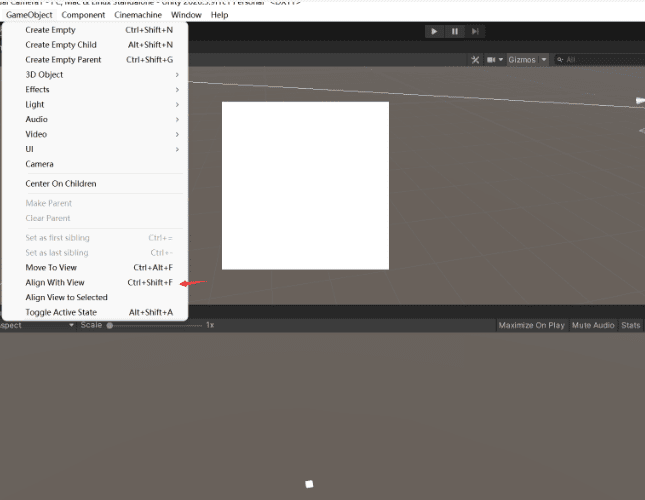

使用快捷键聚焦到游戏物体
![图片[5]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-40.png)
3. 设置相机和层级

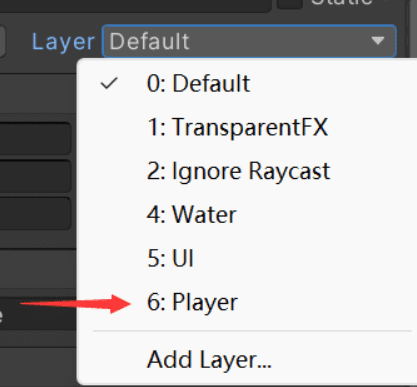

给cube设置一个player层级
![图片[6]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-41.png)

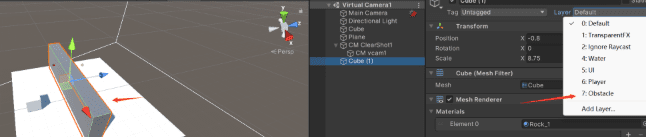

创建一个障碍物并把他的层级设置成Obstacle
![图片[7]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-42.png)

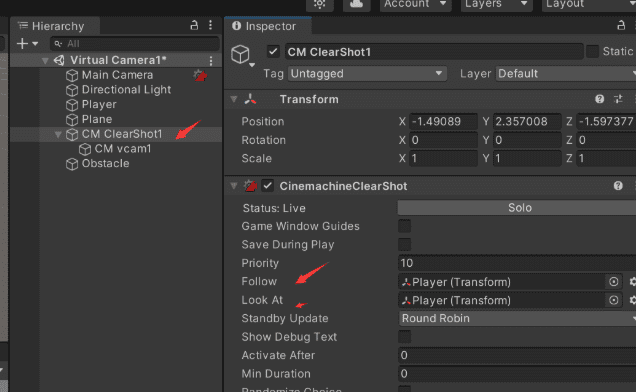

点击CM ClearShot1设置Follow和LookAt属性
![图片[8]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-43.png)

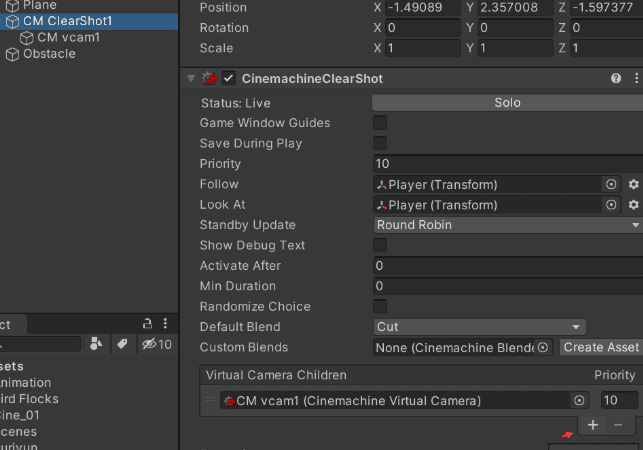

点击+添加一个新的相机
![图片[9]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-44.png)

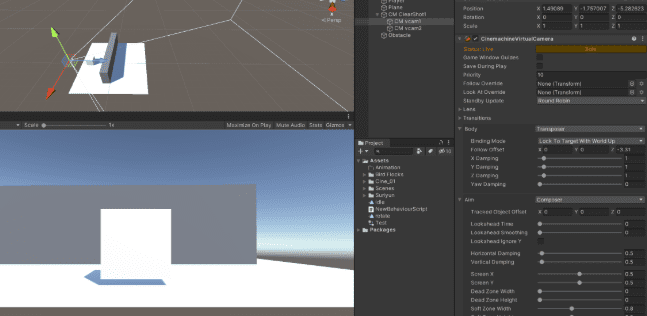

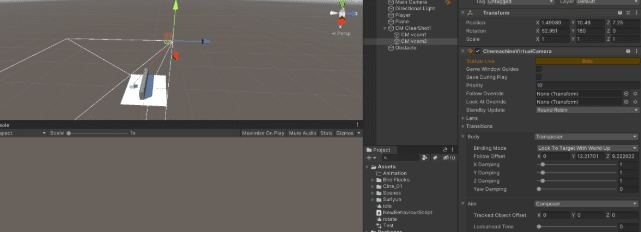

设置2个相机的视角，本文选择一个平行，一个垂直视角
![图片[10]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-45.png)
![图片[11]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-46.png)

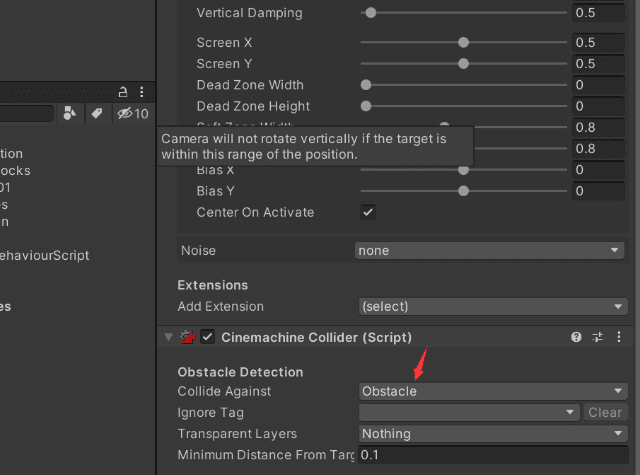

并把2个相机的Collide Against设置成Obstacle
![图片[12]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/image-47.png)

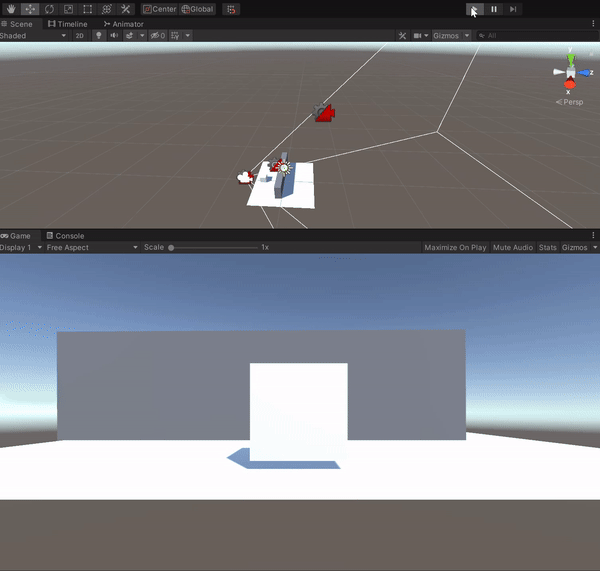

4. 完成
![图片[13]-Unity3d Cinemachine篇（五）— ClearShot-琢码斋](https://www.codyz.cn/wp-content/uploads/2025/07/1363cf45720e08507db58811f901eac1.gif)
